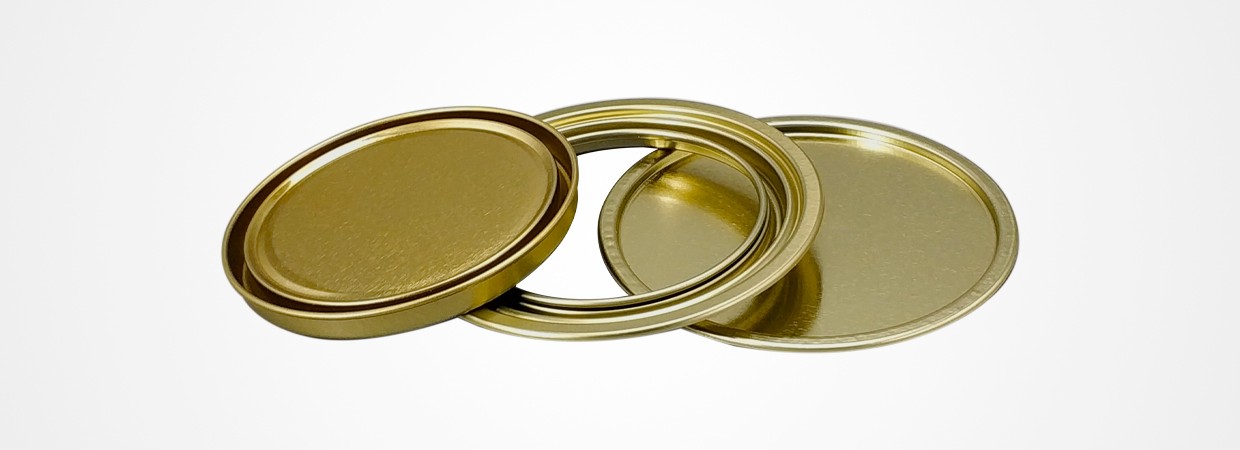

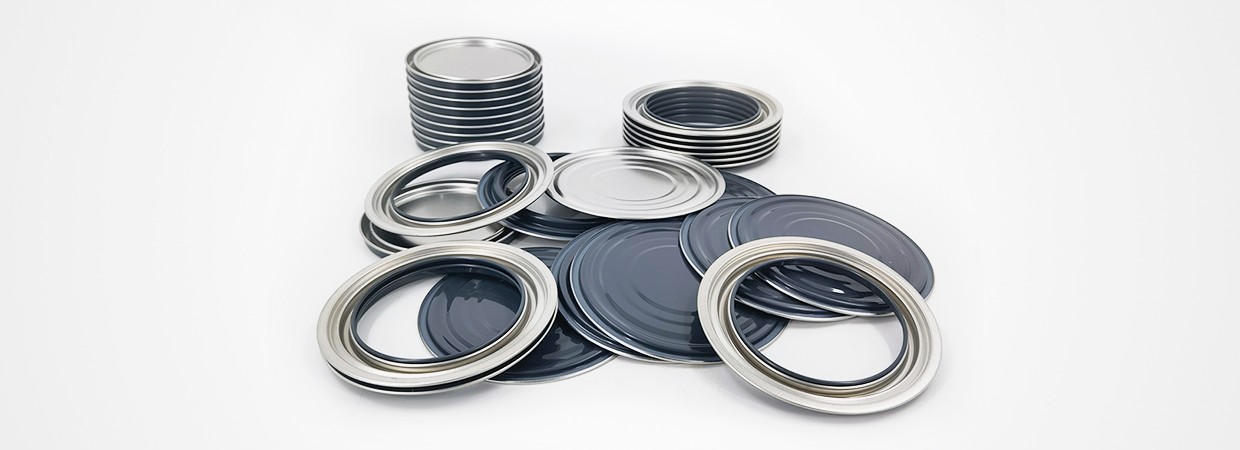

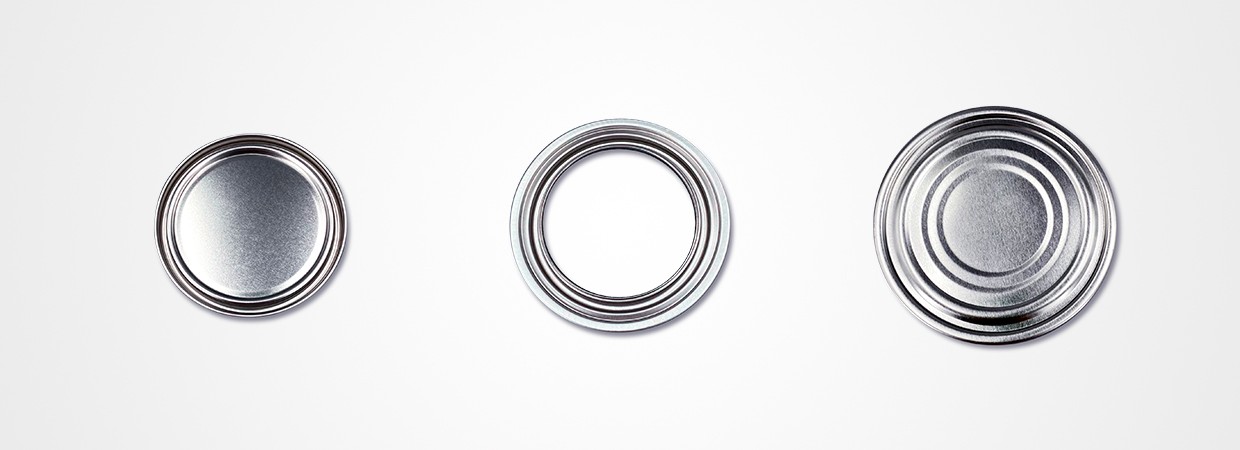

Plug & Ring & End
Plug & Ring & End

Our can components ensure smoothest and easiest operation with excellent tooling properties.
Providing a better solution for the sealing and using of round cans from 0.1 to 5 liters.
we have built automatic production lines for shearing, printing and punching. Due to high efficiency and machinery control ability, we can make the lid in a very precise while profitable way.
Based on the processing lines and mold design team, the specific demands on the coating, color, thickness and rib can all be met.

OEM:We offer various options for lacquering such as vinyl, epoxy or organosol based lacquer and water or oil based compound lining to suit your requirement.

Use:Paint can,Round can,


Product Information
Diameter: 65mm - 178mm
Material: Tinplate
Thickness: 0.20mm - 0.25mm
Lid Style: Single Lid/Triple tight lid
Certificate: ISO 9001
Design: Accept Customization
UN approved: UN IA1009
Coating: Lacquer, Antirust Oil, Epoxy Resin
belding line: with belding line or not
Printing: CMYK And Pantone
(Cooperate with China's top printing factory to restore color)
Applications: Paint
Adhesives
Liquid Waterproofing Membranes
chemical industry
Other Building Products
Product Specification
Size Thickness Diameter  Chuck Diameter  Shape Tightness Coating Available
200# 0.18mm - 0.23mm 50mm 49.27mm Round Single&Triple tight

Clear/Gold/White Lacquer/

Gray Coating/

Buff Coating/

Color Printing

202# 0.18mm - 0.23mm 52mm 51.99mm Round Single&Triple tight
209# 0.18mm - 0.23mm 62mm 61.90mm Round Single&Triple tight
211# 0.18mm - 0.23mm 65mm 65mm Round Single&Triple tight
214# 0.20mm - 0.24mm 73mm 72.90mm Round Single&Triple tight
300# 0.20mm - 0.24mm 76mm 75.60mm Round Single&Triple tight
305# 0.20mm - 0.24mm 80mm 79.98mm Round Single&Triple tight
307# 0.20mm - 0.24mm 85mm 84.50mm Round Single&Triple tight
401# 0.20mm - 0.24mm 99mm 98.60mm Round Triple tight
404# 0.20mm - 0.24mm 105mm 105mm Round Triple tight
404# 0.20mm - 0.24mm 108mm 108mm Round Triple tight
502# 0.20mm - 0.24mm 127mm
127mm Round Triple tight
603# 0.20mm - 0.24mm 153mm 153mm Round Triple tight
610# 0.20mm - 0.24mm 165mm 165mm Round Triple tight
700# 0.20mm - 0.24mm 176mm 176mm Round Triple tight
Get In Touch With Us
Let us Huatai Group provide you with packaging solutions.
